一、CSD (carbonated soft drink) glass bottling line：

a)Output capacity: 300BPM~800BPM (200ml)

b)Warm filling:8~13℃

c)Main machines: depalletizer, case unpacker, bottle washer, filler, mixer, case packer, palletizer, bottle & case conveyor, CIP, etc.

d)Suitable bottle： dia. ?53~66mm, height 70~165mm

e)Suitable cap: standard crown cap (26mm)

f)Package size: 4*6 plastic case, 3*4 carton pack

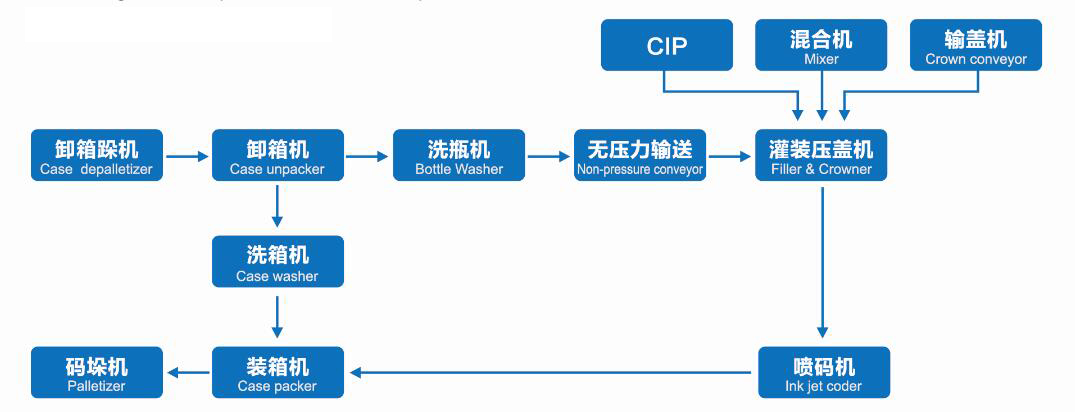

g)Bottling line process flow：

h)Technical characteristics：
1.Optimized line layout, with nominal capacity of individual machines matched according to requirements of the bottling line.
2.Full line uses pressureless transportation to achieve high production efficiency.
3.Full line gives sufficient consideration to energy saving and emission reduction, as well as recovery of energy sources including heat and water.
4.Bottling line equipment composition can be adjusted as appropriate according to customer requirements.


二、CSD canning line

a)Output capacity: 200CPM~600CPM (330ml)

b)Warm filling:8~13℃

c)Main machines: depalletizer, can rinser, can filler & seamer, can warmer, carton packer (shrink wrapper), palletizer, can & case conveyor, CIP, etc.

d)Suitable can： 200/202/206/209 aluminum cans

e)Package size: 4*6 carton pack, 2*3/3*4 shrink wrap

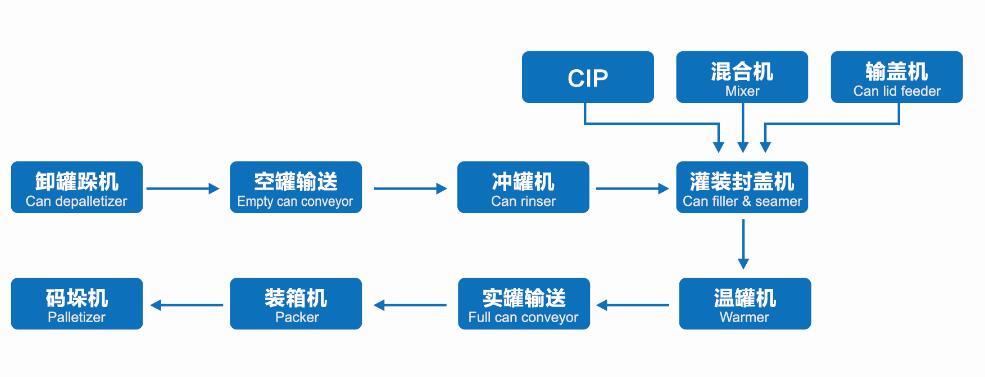

f)Canning line process flow：

g)Technical characteristics：
1.Optimized line layout, with nominal capacity of individual machines matched according to requirements of the bottling line.
2.Full line uses pressureless transportation to achieve high production efficiency.
3.Full line gives sufficient consideration to energy saving and emission reduction, as well as recovery of energy sources including heat and water.
4.Bottling line equipment composition can be adjusted as appropriate according to customer requirements.

三、CSD PET bottling line：

a)Output capacity: 200BPM~600BPM (500ml)

b)Warm filling :8~13℃

c)Main machines: blow molder, air conveyor, Rinser & filler & capper, bottle warmer, carton packer (shrinkwrapper), palletizer, bottle & case conveyor, CIP, etc.

d)Suitable bottle： dia. ?58~110mm, height 180~350mm

e)Package size: 4*6 carton pack, 2*3/3*4 shrink wrap

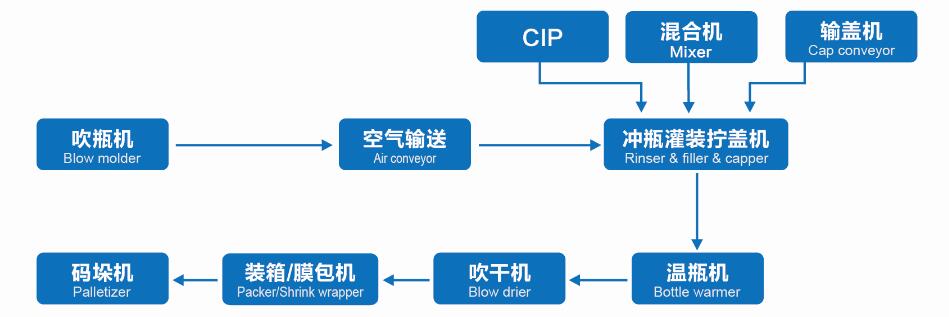

f)PET bottling line process flow：

g)Technical characteristics：

1.Optimized line layout, with nominal capacity of individual machines matched according to requirements of the bottling line.

2.Full line uses pressureless transportation to achieve high production efficiency.

3.Full line gives sufficient consideration to energy saving and emission reduction, as well as recovery of energy sources including heat and water.

4.Bottling line equipment composition can be adjusted as appropriate according to customer requirements.
