一、Beer bottling line:

a)Output capacity: 18000BPH~50000BPH (640ml)

b)Main machines: depalletizer, case unpacker, bottle washer, filler, pasteurizer, case packer, palletizer, bottle & case conveyor, labeller, CIP, etc.

c)Suitable bottle： dia. ?66~80.5mm, height 210~295mm

d)Suitable cap: standard crown cap (26mm)

e)Package size: 4*6 plastic case, 3*4 carton pack

f)Bottling line process flow

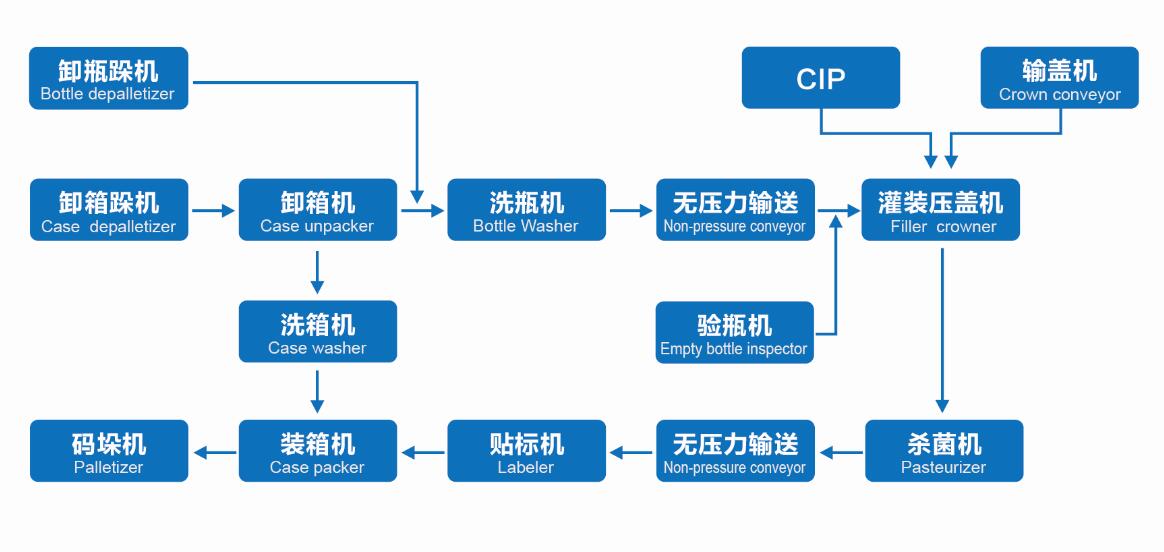

Normal beer bottling line

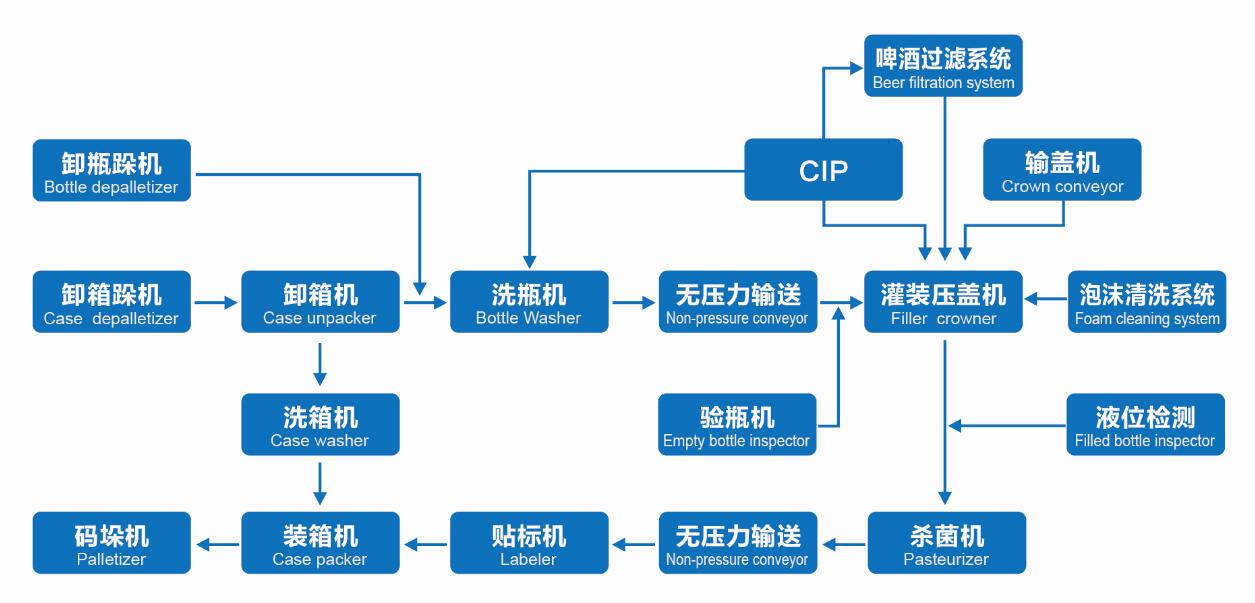

Draft beer bottling line

g)Technical characteristics：
1.Optimized line layout, with nominal capacity of individual machines matched according to requirements of the bottling line.
2.Full line uses pressureless transportation to achieve higher production efficiency.
3.Full line gives sufficient consideration to energy saving and emission reduction, as well as recovery of energy sources including heat and water.
4.Bottling line equipment composition can be adjusted as appropriate according to customer requirements.
Bottling line layout

二、Beer canning line:

a)Output capacity: 12000CPH~90000CPH (330ml)

b)Main machines: depalletizer, can rinser, can filler & seamer, pasteurizer, carton packer (shrink wrapper), palletizer, can & case conveyor, CIP, etc.

c)Suitable can： 200/202/206/209 aluminum cans

d)Package size: 4*6 carton pack, 2*3/3*4 shrink wrap

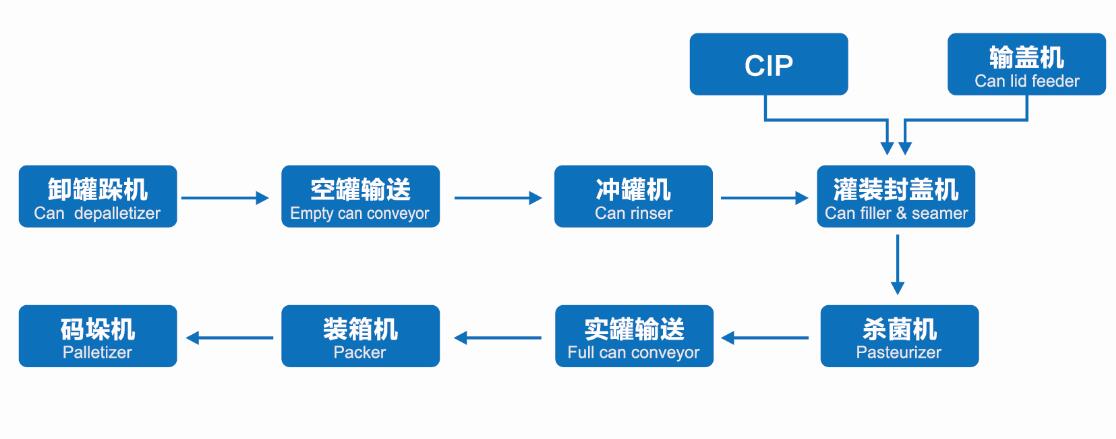

e)Canning line process flow：

f)Technical characteristics：
1.Optimized line layout, with nominal capacity of individual machines matched according to requirements of the bottling line.
2.Full line uses pressureless transportation to achieve high production efficiency.
3.Full line gives sufficient consideration to energy saving and emission reduction, as well as recovery of energy sources including heat and water.

4.Bottling line equipment composition can be adjusted as appropriate according to customer requirements.
